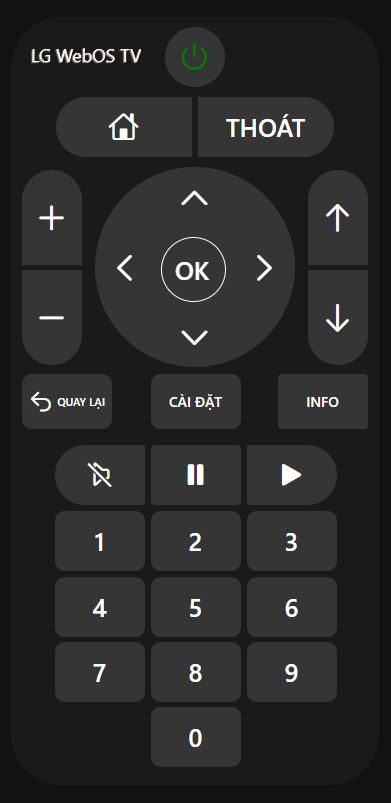

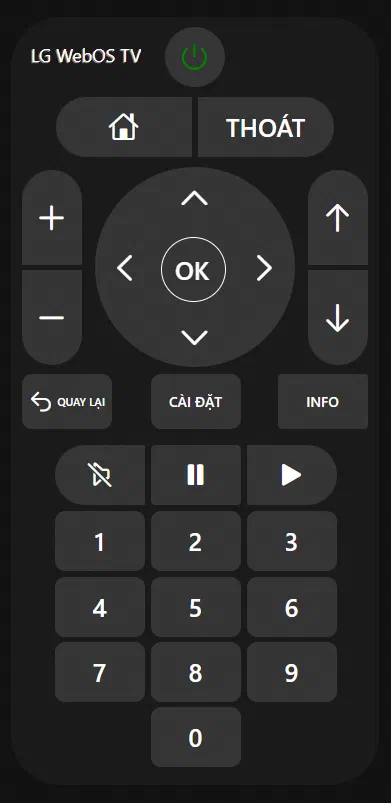

🌐 SONG NGỮ[OpenHAB] Share Widget điều khiển từ xa LG WebOS TV.
MỤC LỤC BÀI VIẾT (Nhấn để xem)
Thông tin và yêu cầu
- OpenHAB version: 4.3.3
- Đã cài đặt LG WebOS binding
Widget do mình tự thiết kế lại dựa trên các widget có sẵn được chia sẻ trên trang chủ. Các bác copy nhớ ghi nguồn đầy đủ nhé ^^.
Hướng dẫn sử dụng
- Từ MENU > Develope Tools > Widgets > Thêm Widget mới, dán code và tận hưởng.
uid: LGWebOSremote
tags: []
props:
parameters:
- context: item
description: Select the RCButton item
label: Simulate a Remote Control button press
name: item
required: true
type: TEXT
- context: item
description: Select the Power switch item
label: Power ON/OFF TV
name: power
required: true
type: TEXT
- context: item
description: Select the Mute switch item
label: Mute audio of the device
name: mute
required: true
type: TEXT
parameterGroups: []
timestamp: Mar 11, 2025, 8:00:38 PM
component: f7-card
config:
style:
--f7-card-margin-horizontal: 0px
background-color: rgb(26, 26, 26)
border-radius: 50px
height: 48rem
width: 23rem
slots:
default:
- component: Label
config:
style:
color: white
font-size: 18px
left: 20px
top: 22px
line-height: 32px
overflow: hidden
position: absolute
text-overflow: ellipsis
text-shadow: -1px 1px 1px hsl(0,0%,66%)
white-space: nowrap
text: ="LG WebOS TV"
- component: oh-button
config:
action: command
actionCommand: "=(items[props.power].state === 'OFF') ? 'ON' : 'OFF' "
actionItem: =props.power
iconF7: power
iconSize: 30
color: white
style:
background-color: rgb(53,53,53)
color: "=(items[props.power].state === 'OFF') ? 'green' : 'red' "
display: flex
border-radius: 50%
height: 60px
left: 154px
position: absolute
top: 10px
width: 60px
- component: oh-button
config:
action: command
actionCommand: HOME
actionItem: =props.item
iconF7: house
iconSize: 30
style:
background-color: rgb(53,53,53)
border-radius: 50px 0 0 50px
color: white
display: flex
font-size: 25px
height: 60px
left: 45px
position: absolute
top: 80px
width: 136px
- component: oh-button
config:
action: command
actionCommand: EXIT
actionItem: =props.item
text: THOÁT
style:
background-color: rgb(53,53,53)
border-radius: 0 50px 50px 0
color: white
display: flex
font-size: 25px
height: 60px
left: 187px
position: absolute
top: 80px
width: 136px
- component: oh-button
config:
action: command
actionCommand: VOLUMEUP
actionItem: =props.item
iconF7: plus
iconSize: 35
style:
background-color: rgb(53,53,53)
border-radius: 50px 50px 0 0
color: white
display: flex
font-size: 25px
height: 95px
left: 11px
position: absolute
top: 153px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: VOLUMEDOWN
actionItem: =props.item
iconF7: minus
iconSize: 35
style:
background-color: rgb(53,53,53)
border-radius: 0 0 50px 50px
color: white
display: flex
font-size: 25px
height: 95px
left: 11px
position: absolute
top: 253px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: UP
actionItem: =props.item
iconF7: chevron_up
iconSize: 35
style:
border-radius: 50%
color: white
display: flex
font-size: 25px
height: 60px
left: 154px
position: absolute
top: 150px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: RIGHT
actionItem: =props.item
iconF7: chevron_right
iconSize: 35
style:
border-radius: 50%
color: white
display: flex
font-size: 25px
height: 60px
right: 84px
position: absolute
top: 220px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: DOWN
actionItem: =props.item
iconF7: chevron_down
iconSize: 35
style:
border-radius: 50%
color: white
display: flex
font-size: 25px
height: 60px
left: 154px
position: absolute
top: 290px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: LEFT
actionItem: =props.item
iconF7: chevron_left
iconSize: 35
style:
border-radius: 50%
color: white
display: flex
font-size: 25px
height: 60px
left: 84px
position: absolute
top: 220px
width: 60px
z-index: 2
- component: f7-badge
config:
style:
border: white solid 1px
background-color: rgb(53,53,53)
border-radius: 50%
height: 65px
left: 150px
position: absolute
top: 220px
width: 65px
z-index: 2
- component: f7-badge
config:
style:
border-radius: 50%
background-color: rgb(53,53,53)
height: 200px
left: 84px
position: absolute
top: 150px
width: 200px
z-index: 1
- component: oh-button
config:
action: command
actionCommand: ENTER
actionItem: =props.item
style:
border-radius: 50px
color: white
display: flex
font-size: 25px
height: 65px
left: 149px
position: absolute
top: 220px
width: 65px
z-index: 2
text: OK
- component: oh-button
config:
action: command
actionCommand: CHANNELUP
actionItem: =props.item
iconF7: arrow_up
iconSize: 35
style:
background-color: rgb(53,53,53)
border-radius: 50px 50px 0 0
color: white
display: flex
font-size: 25px
height: 95px
left: 297px
position: absolute
top: 153px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: CHANNELDOWN
actionItem: =props.item
iconF7: arrow_down
iconSize: 35
style:
background-color: rgb(53,53,53)
border-radius: 0 0 50px 50px
color: white
display: flex
font-size: 25px
height: 95px
left: 297px
position: absolute
top: 253px
width: 60px
z-index: 2
- component: oh-button
config:
action: command
actionCommand: BACK
actionItem: =props.item
iconF7: arrow_uturn_left
iconSize: 25
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 11px
height: 55px
left: 11px
position: absolute
top: 357px
width: 90px
text: QUAY LẠI
- component: oh-button
config:
action: command
actionCommand: MENU
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
height: 55px
left: 140px
position: absolute
top: 357px
width: 90px
text: CÀI ĐẶT
- component: oh-button
config:
action: command
actionCommand: INFO
actionItem: =props.item
text: INFO
style:
background-color: rgb(53,53,53)
color: white
display: flex
height: 55px
left: 267px
position: absolute
top: 357px
width: 90px
- component: oh-button
config:
action: command
actionCommand: MUTE
actionItem: =props.item
color: "=(items[props.mute].state === 'OFF') ? 'white' : 'red'"
iconF7: speaker_slash_rtl
iconSize: 30
style:
background-color: rgb(53,53,53)
border-radius: 50px 0 0 50px
display: flex
font-size: 25px
height: 60px
left: 44px
position: absolute
top: 428px
width: 90px
- component: oh-button
config:
action: command
actionCommand: PAUSE
actionItem: =props.item
iconF7: pause_fill
iconSize: 30
style:
background-color: rgb(53,53,53)
color: white
display: flex
height: 60px
left: 140px
position: absolute
top: 428px
width: 90px
- component: oh-button
config:
action: command
actionCommand: PLAY
actionItem: =props.item
iconF7: play_fill
iconSize: 30
style:
background-color: rgb(53,53,53)
border-radius: 0 50px 50px 0
color: white
display: flex
height: 60px
left: 236px
position: absolute
top: 428px
width: 90px
- component: oh-button
config:
action: command
actionCommand: 1
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 44px
position: absolute
top: 494px
width: 90px
text: 1
- component: oh-button
config:
action: command
actionCommand: 2
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 140px
position: absolute
top: 494px
width: 90px
text: 2
- component: oh-button
config:
action: command
actionCommand: 3
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 236px
position: absolute
top: 494px
width: 90px
text: 3
- component: oh-button
config:
action: command
actionCommand: 4
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 44px
position: absolute
top: 560px
width: 90px
text: 4
- component: oh-button
config:
action: command
actionCommand: 5
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 140px
position: absolute
top: 560px
width: 90px
text: 5
- component: oh-button
config:
action: command
actionCommand: 6
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 236px
position: absolute
top: 560px
width: 90px
text: 6
- component: oh-button
config:
action: command
actionCommand: 7
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 44px
position: absolute
top: 625px
width: 90px
text: 7
- component: oh-button
config:
action: command
actionCommand: 8
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 140px
position: absolute
top: 625px
width: 90px
text: 8
- component: oh-button
config:
action: command
actionCommand: 9
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 236px
position: absolute
top: 625px
width: 90px
text: 9
- component: oh-button
config:
action: command
actionCommand: 0
actionItem: =props.item
style:
background-color: rgb(53,53,53)
border-radius: 10px
color: white
display: flex
font-size: 25px
height: 60px
left: 140px
position: absolute
top: 690px
width: 90px
text: "0"
TAGS:
#openhab
Chuyên đề
•
4 TậpSmartHome
- [OpenHAB] Cảm biến nhiệt độ, độ ẩm Xiaomi LYWSD03MMC với ESPHome trên ESP32-C3.
- [OpenHAB] Share script Âm lịch Việt Nam cho OpenHAB
- [OpenHAB] Công tơ điện tử với PZEM004T và ESPHome trên ESP32-C3.
- [OpenHAB] Share Widget điều khiển từ xa LG WebOS TV. Đang đọc
Bình luận & Thảo luận 0
Chia sẻ thắc mắc, phản hồi hoặc kinh nghiệm thực chiến của bạn
